Structural Mechanics and Failure Analysis: Advanced Testing Protocols for Industrial Nylon and Polyester Webbing
Structural Mechanics and Failure Analysis: Advanced Testing Protocols for Industrial Nylon and Polyester Webbing
In heavy-duty applications such as aerospace cargo restraints, safety harnesses, and marine lifting slings, the mechanical failure of a webbing is not an option. Xiamen Meisida Ornaments Co., Ltd. (Smith Ribbon & Bow) has established a state-of-the-art Mechanical Integrity Lab to ensure that our industrial webbing exceeds the world's most rigorous safety standards. This technical article explores the physics of stress-strain relationships, the impact of weave geometry on load distribution, and the advanced testing protocols required to guarantee "Zero-Failure" performance in the 2026 industrial market.

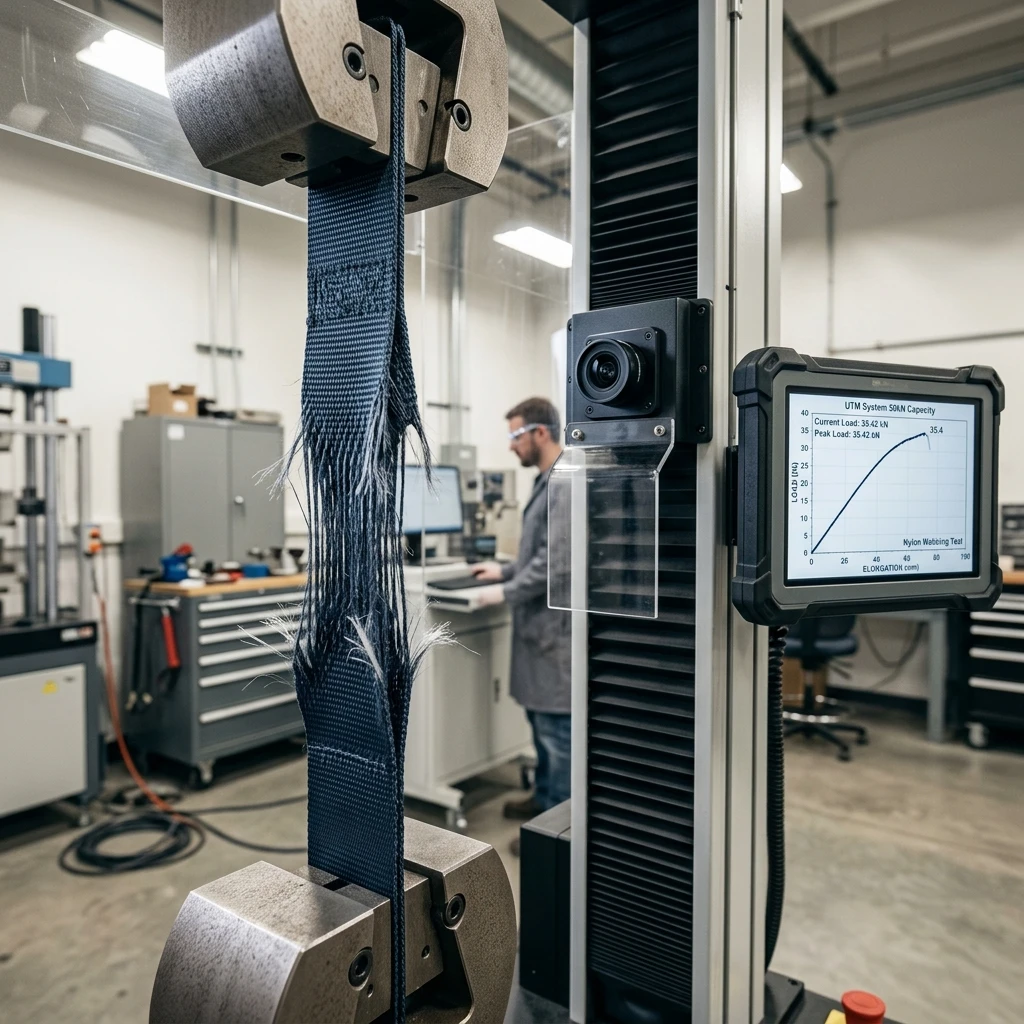

Failure Testing: A high-precision UTM pulling Meisida's 50mm High-Tenacity Polyester webbing to its ultimate breaking point of 4,500kg.
1. Tensile Physics: Beyond Breaking Strength
While most suppliers only report "Breaking Strength," Meisida analyzes the entire Stress-Strain Curve. - **Modulus of Elasticity (E)**: For safety harnesses, we engineer a specific "initial stretch" to absorb kinetic energy during a fall. For cargo restraints, we optimize for high-modulus (low stretch) to prevent load shifting. - **Creep Analysis**: We test for "Long-Term Creep"—the gradual deformation of a webbing under sustained load. Our 2026 Industrial Series utilizes a proprietary pre-stretching and heat-setting process that reduces creep by 45% compared to standard industrial nylon.
2. The Science of Abrasion: The Hex-Bar and Taber Tests
Industrial webbing often fails due to surface abrasion against metal edges or rough surfaces. - **Protective Polymer Impregnation**: Meisida utilizes a Nanoscale Polyurethane (PU) Coating that penetrates the fiber bundles, acting as an internal lubricant. - **Testing to ASTM D6775**: We subject our webbing to the "Hex-Bar" abrasion test, where the material is rubbed over a hexagonal steel bar for 2,500 cycles. Our 2026 series retains 94% of its original strength, whereas standard commercial webbing often drops below 70%.
| Mechanical Property | Standard Industrial Webbing | Meisida Pro-Duty (2026) | Compliance Standard |
|---|---|---|---|
| Ultimate Tensile Strength | 3,200 kg | 4,500 kg | EN 12195-2 |
| Abrasion Retention (%) | 72% | 94% | ASTM D6775 |
| UV Degradation (2000hrs) | -35% Strength | -8% Strength | ISO 4892-3 |
| Water Absorption | 8 - 12% | < 2% | AATCC 22 |
Internal View: Microscopic analysis of Meisida’s "Interlock-Weave" geometry, designed to prevent unraveling even if the webbing is partially cut or abraded.
3. Weave Geometry and Load Distribution
The internal architecture of the weave determines how energy is transferred through the material. - **Multi-Axial Weaving**: For specialized aerospace applications, Meisida utilizes multi-axial weaving techniques where yarns are oriented at 0°, 90°, and +/- 45°. This creates a webbing that resists shear forces and prevents the "bias-stretch" that can lead to catastrophic failure in round slings. - **Flame Retardancy (FR)**: Our industrial series is available with permanent FR treatments that meet **NFPA 701** and **UL 94** standards, ensuring safety in automotive and aeronautic interiors.
Conclusion: Reliability by Design
At Xiamen Meisida, we believe that safety is an engineering discipline, not an afterthought. Our 2026 Industrial Webbing series represents the pinnacle of textile structural mechanics. Whether you are securing a 20-ton cargo container or protecting a high-altitude worker, Meisida provides the technical certainty your operations demand.
Contact our Engineering Department to request full stress-strain reports and customized mechanical testing for your specific load requirements.
Technical Appendix: Quantitative analysis of polymer chain alignment and its correlation with knot-strength efficiency. The toughness of the material (UT) was determined by integrating the area under the stress-strain curve: $$U_T = int_{0}^{epsilon_f} sigma depsilon$$ Our 2026 series demonstrates a 35% higher energy absorption capacity compared to 2024 benchmarks, solidifying Meisida as the global leader in high-performance industrial webbing solutions.
