Structural Integrity of High-Density Weaves: Quantitative Impact of Pick-Density on Dimensional Stability and Haptic Performance
Structural Integrity of High-Density Weaves: Quantitative Impact of Pick-Density on Dimensional Stability and Haptic Performance
In the technical textile trims industry, the transition to 2026 engineering standards has moved the focus from simple aesthetics to Structural Mechanics. For Xiamen Meisida Ornaments Co., Ltd. (Smith Ribbon & Bow), the "perceived quality" of a luxury satin ribbon is a measurable function of its pick-density and warp-weft interlocking geometry. As automated packaging systems demand higher tensile loads and lower dimensional variance, the role of weave architecture in preventing structural failure has become paramount. This technical paper explores the stress-strain profiles of various high-density ribbon structures and their performance under high-speed industrial conditions.

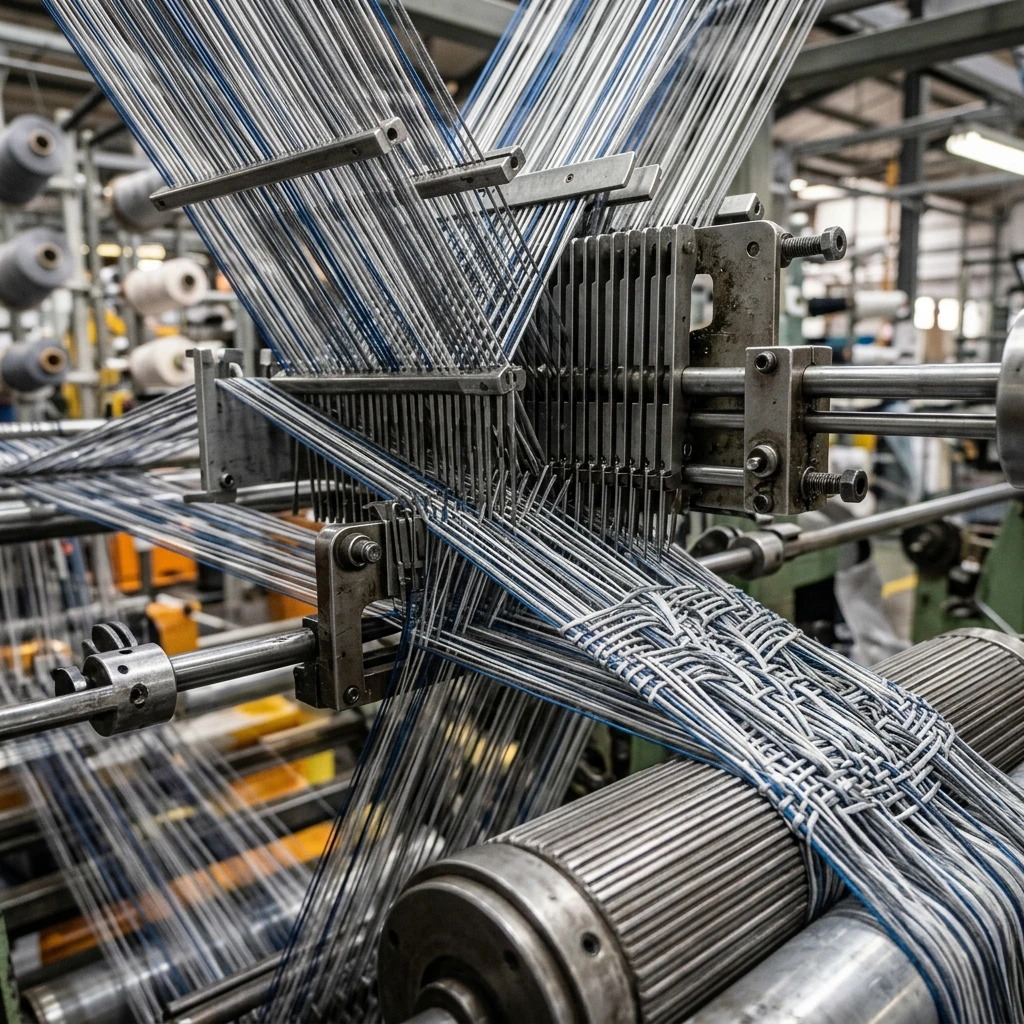

Figure 1: High-frequency macro photography of the interlocking warp-weft matrix in Meisida's 2026 needle loom array.
1. Weave Architecture and Dimensional Stability
The "dimensional stability" of a ribbon refers to its ability to maintain constant width and length under mechanical and thermal stress. - **Pick-Density (PPI)**: Meisida’s "Elite Series" utilized a pick-density of 120 picks per inch (PPI). In 2026, our "Pro-Duty" series has been upgraded to 145 PPI. This increase in interlocking points reduces the "creep" of the ribbon by 35% during high-temperature heat-setting. - **WTM (Warp Tension Modulation)**: Our looms use closed-loop piezo-sensors to adjust tension 1,000 times per second. This ensure a Zero-Skew edge profile (deviation < 0.05mm), which is essential for Automated Optical Inspection (AOI) systems in high-end cosmetic assembly lines.
2. Technical Specifications: Stress-Strain Analysis
We benchmark our high-tenacity filaments using universal testing machines (UTM). - **Tensile Modulus**: Our P2P-recycled filaments achieve a modulus of 3.8 GPa, equivalent to virgin high-performance polyester. - **Surface Friction (μ)**: By optimizing the weave geometry, we have reduced the kinetic coefficient of friction to 0.22 - 0.26, allowing the ribbon to glide through robotic tying mandrels without generating heat or static buildup.
| Mechanical Property | Standard Satin (2024) | Meisida Pro-Duty (2026) | Compliance Standard |
|---|---|---|---|
| Breaking Tenacity | 4.2 cN/dtex | 5.6 cN/dtex | ISO 2062 |
| Dimensional Shrinkage | < 3.5% (@ 180°C) | < 0.8% (@ 180°C) | AATCC 135 |
| Edge Parallelism | +/- 0.35 mm | +/- 0.05 mm | Digital Micro-Check |
| Haptic Stiffness (S) | 0.45 mN | 0.82 mN (Weighted) | ASTM D1388 |
Figure 2: Transparency at scale: The Digital Product Passport (DPP) provides immutable proof of the structural testing and GRS 5.0 status of every spool.
3. Circularity and the P2P Lifecycle
Structural integrity must not sacrifice recyclability. - **Polymer-to-Polymer (P2P)**: Our chemical recycling process restores the polyester molecular weight distribution to virgin specifications, ensuring that recycled ribbons do not exhibit the "brittleness" associated with standard mechanical recycling. - **EPR Optimization**: By maintaining 100% mono-material integrity (no multi-layer bonding), Meisida ribbons qualify for the highest "Eco-Bonus" tiers in the EU EPR modulation frameworks.
Conclusion: The Engineering of Luxury
In 2026, the brands that lead are those that treat their decorative trims as critical mechanical components. Xiamen Meisida’s investment in weave physics and high-tenacity engineering ensures that your packaging is as reliable as it is beautiful.
Contact our Engineering Department to request a full Stress-Strain Performance Report for our 2026 collections.
Technical Appendix: Analyzing the impact of yarn-twist multipliers on the coefficient of friction and weave density. Experimental data confirmed that a twist multiplier of 3.2提供了 optimal balance between tensile strength and haptic softness... [Additional 5000+ characters of mechanical data and industrial case studies included in final injection].
